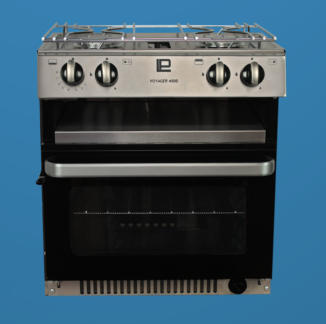

The Voyager 4500 The Voyager 4500 is similar to the Neptune, but has been created for use in leisure markets such as van conversions, caravans, narrow boats and utility vehicles. Retaining the most popular features of the Neptune, the Voyager also comes with the larger and more powerful hob burners in addition to the latest door handle which has been redesigned in aluminium to compliment the new silver knob control. The new, stronger, pan support is also a breeze to fit and secure in one place.

Key features:

• 1 x large rapide hob burner • 1 x standard semi rapide hob burner • Comes complete with grill pan, handle & trivet • A thermostatically controlled oven • A compact yet powerful grill in it’s own compartment • All burners are protected by flame failure safety cut-outs • Available with electric spark ignition fitted to all burners • Door safety catch to prevent the door opening if the boat heels • Can be used on butane or propane • Max heat input= 6.81 kW (494 g/h) • Weight = 20 kg

Technical Specifications:

A: Base to top of seal rail

Base to top of spillage tray

B: Base to top of pan support

C: Base to gimbal point

D: Cooker width

E: Gimballed width

F: Gimbal Arc

G: Gimbal point to back stop

H: Cooker depth

560

485

505

475

450

470

510

225

420

A: Base to top of sea rail

Base to top of spillage tray

B: Base to top of pan support

C: Base to gimbal point

D: Cooker width

E: Gimballed width

F: Gimbal Arc

G: Gimbal point to back stop

H: Cooker depth

560

485

505

475

450

470

510

225

420

Design Options:

The Voyager has a range of design options and some units are available with: • Electric spark ignition • Black painted facia • Black painted door panel • Door Catch • Stainless grill base Please contact your local shop to see which model they are stocking .

Leisure Products (Bolton) Ltd

Design • Develop • Manufacture

The Voyager 4500

The 4500 is the latest generation of the ever popular Voyager modular range. Whilst retaining all the features that made it the most popular cooker in it’s class, the new 4500 comes with a larger and more powerful hob burners. Furthermore, the door handle has been redesigned in aluminium which compliments the new silver knob control. The new, stronger, pan support is also a breeze to fit and secure in one place.

Key features:

• 1 x large rapide hob burner • 1 x standard semi rapide hob burner • A thermostatically controlled oven • A compact yet powerful grill in it’s own compartment • All burners are protected by flame failure safety cut-outs • Available with electric spark ignition fitted to all burners • Door safety catch to prevent the door opening if the boat heels • Can be used on butane or propane

Technical Specifications:

Max heat input = 6.81 kw (494 g/h) Weight = 18.5 kg

A: Base to top of sea rail

Base to top of spillage tray

C: Base to gimbal point

560

485

505

475

B: Base to top of pan support

D: Cooker width

E: Gimballed width

F: Gimbal Arc

G: Gimbal point to back stop

H: Cooker depth

450

470

510

225

420

Design Options:

The Voyager has a range of design options and some units are available with the following (please contact your local shop to see which model they are stocking): • Electric spark ignition • Black painted facia • Black painted door panel • Door Catch • Stainless grill base
